LED Tubes - Installation Instructions

Notes:

- The LED tube is suitable for single tube lamp holders with one ballast per tube.

- Tandem (serial) circuits need to be changed to direct parallel connection.

1. Turn off the power


2. Take out the old FL tube

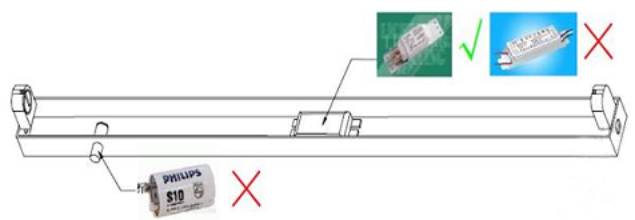

3. Check the ballast and the starter:
   If the lamp has an electronic ballast (no starter present), remove it.
   A conventional ballast may stay.


4. Take out the Starter


5. Insert the new LED tube
