T8 SMD LED Tubes - Specifications

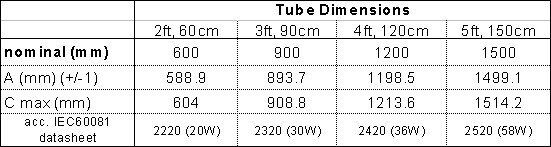

Dimensions

The LED tubes are interchangeable with the respective standard FL tubes

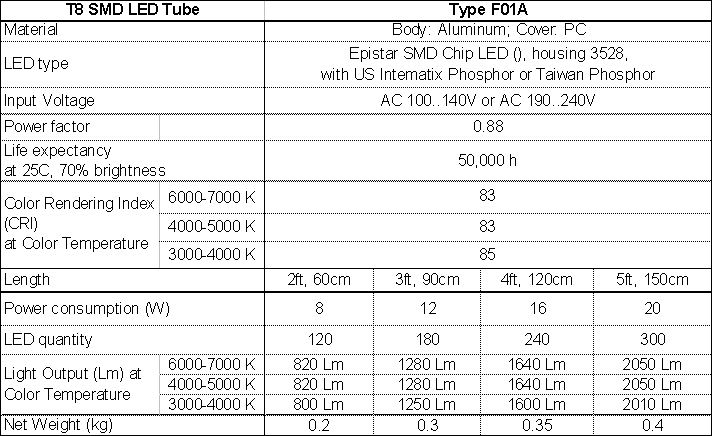

Typical Data

Conditions

Environmental Conditions

- Operation environment: -20°C to 40°C, in open air, not encapsulated

- Storage: -30°C to 80°C

- IP Class: IP20, sealed versions available on request

Safety and Approvals

- CE declaration and test reports

- GS, UL, CCC etc. on request

Warranty

Quality guarantee is based on storing, installing,operating and maintaining correctly in the normal operation condition

We maintain the right to either repair, parts replacing, or product exchange during the quality warranty period

Installation Instructions: see next page
